Quick Start Guide to using Duro's GraphQL API

Objective: To provide you with resources to obtain an API.

Difficulty: Advanced

Who is this for: Enterprise accounts

 In this article:

1. Overview
2. How to retrieve an API token
3. API key and sample queries
   • Curl example with API key and query
   • Components query
   • Component by ID query
4. How to retrieve a list of components
5. How to retrieve a component by ID
6. API Schema Document

Increase speed and accuracy by using Duro's API to access your data. Lower the likelihood of errors through automation and integrate more thoroughly to 3rd party systems, servers, and databases.

Overview

Duro provides an API to customers with an active PLM Enterprise account. By using a Duro-provided key to access Duro’s GraphQL API, users can query rich data surrounding their component and product libraries. In this document, you will find two sample queries: one to retrieve a list of components and another to retrieve a single component based on its ID. The components query provides a long list of all components which can be sorted by name, date, mass, revision, category, etc. (subject to change). The componentsByIds query can subsequently be used once the ID of the component is obtained to load further component details.

If you have any questions on Duro's GraphQL API, send an email to [e-mail]. For more information on how Duro utilizes webhooks in conjunction with APIs, please refer to our article on Webhooks.

How to retrieve an API token

To retrieve an API token in your Duro app, follow the directions below:

1. Login into your Duro account.
2. Click on your avatar and select Account Settings.
3. In the Settings menu, select the Integrations tab.
4. Click on the Get API Key button below the Integrations table.
5. This will present the key. Highlight and copy the key.

Every token is uniquely generated per user and lasts for 90 days. An existing token may be used to generate a new token using the query:

{
  apiToken {
    token
  }
}

API key and sample queries

Curl example with API key and query

Clients with dedicated hosting environments have a unique link for obtaining their API key and query:

• Base API URL: https://mfg.duro.app/graphql
• ITAR clients: https://app.govduro.us/graphql

curl -XPOST https://mfg.duro.app/graphql \
-H 'apiToken: <my_token>' \
-H 'Content-Type: application/json' \
--data '{
  "query": "<GraphQL_query>"
}'

Components query

{
  components(libraryType: GENERAL) {
    connection(
      first: 1000
    ) {
      totalCount
      edges {
        cursor
        node {
          id
          name
          created
          lastModified
        }
      }
    }
  }
}

Component by ID query

{
  componentsByIds(id: <some_id>) {
    id
    alias
    name
    mode
    cpn {
      id
      prefix
      counter
      variant
      displayValue
    }
    children {
      itemNumber
      quantity
      assemblyRevision {
        mass
        alias
      }
    }
    company {
      id
      name
      users {
        id
        firstName
      }
    }
    revisions {
      id
      name
      subRevisions {
        id
        name
      }
    }
  }
}

How to retrieve a list of components

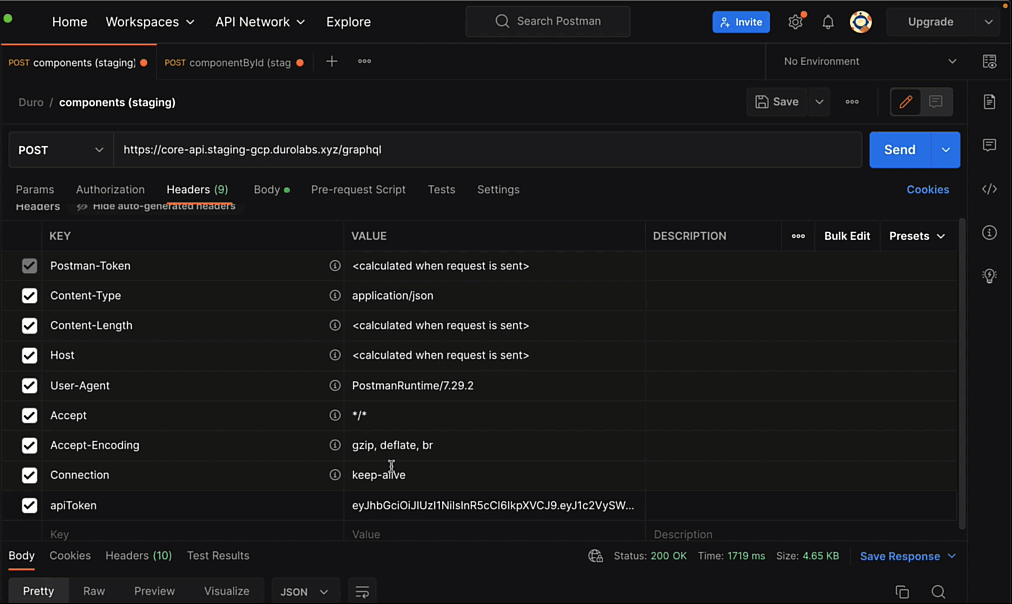

To retrieve a list of components, follow the directions below:

1. Open the API tool of your choice (such as Postman or Curl).
2. Paste the key copied from Duro into the API token header. Ensure that any carriage returns are removed.
3. In the body, create a components query (optional: use the sample query provided in the API key and sample queries section above).
4. Run the query.

The response structure is based on the GraphQL relay specification which includes a connection with an array of edges and nodes. The more fields requested, the more information will be returned. However, larger queries with more fields will potentially render slower results.

How to retrieve a component by ID

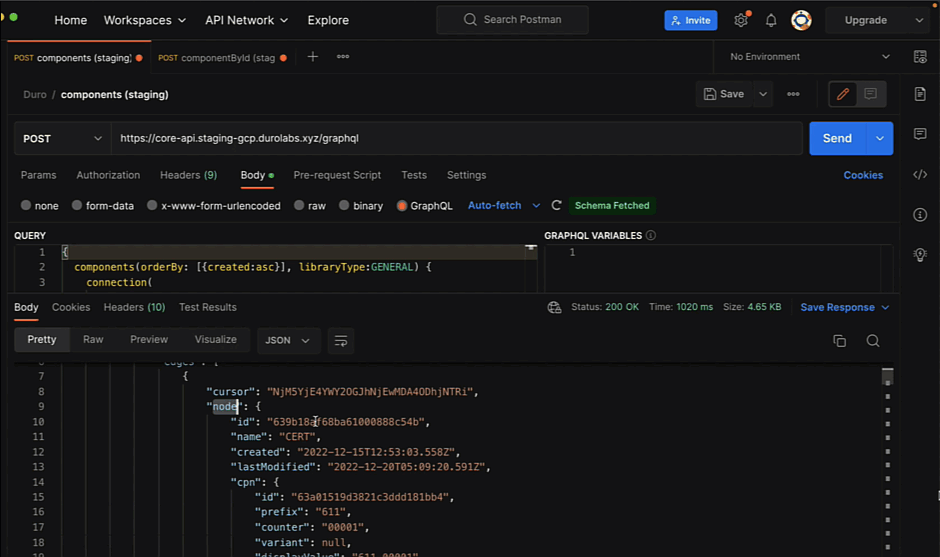

To procure individual component information, you can run component queries individually. To retrieve a component by ID, follow the directions below:

1. Open the API tool of your choice (such as Postman or Curl).
2. Paste the key copied from Duro into the API token header. Ensure that any carriage returns are removed.
3. In the body, create a componentsByIds query (optional: use the sample query provided in the API key and sample queries section above).
4. Copy an ID from the list generated by the components query.
5. Paste the ID into the componentsByIds ids argument and include any additional fields as needed.
6. Run the query.

This query will return a more detailed response with additional fields such as component fields, company ID, revisions, etc. For a full list of returned fields, see the latest schema documentation.

API schema and additional resources

You can find the full list of available Duro API queries and types in the Duro GraphQL API documentation.

If you have any questions on Duro's GraphQL API, send an email to [e-mail].

By default the API uses the company library; however, if you would prefer to use a personal Sandbox library for testing, please refer to our article on API Testing in the Sandbox.
